GL14 XLR Generator 14-tone/noise phantom

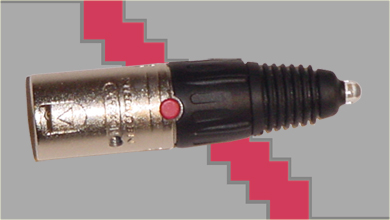

The GL14 14 function sine wave generator with a Phantom Power Indicator is a handy and cost effective tool. Rugged and pocket-sized, it belongs in every toolbox. The compact design features a Microphone Level Output with 14 functions activated by a single push button. Packaged in a Standard Neutrik XLR connector, the GL14 is easy to carry and easy to use. Its multiple functions will help you with the analysis and calibration of sound systems and will facilitate trouble shooting. The internal amplifier in the GL14 utilizes phantom power from your XLR audio mic lines to generate the tones.

Features

l Rugged and Easy To Use
l Cost Effective
l 7 Sine Waves
l 7 Sweeps and Pulses

Specifications

Functions Included
Sine Waves: Sweeps and Pulses:
100Hz Low/High Sine Wave - Simultaneous 40Hz and 2.4kHz signal
250Hz Delay Pulse - Repeated pulse
315Hz Cyclical Sine Waves - Step thru all 7 sine waves
400Hz Cyclical Level 1kHz - 1kHz stepped at different levels
1kHz 2kHz Pulse
2kHz Sweep Trace - Special signal to detect line breaks
10kHz Phantom Power Indicator - Tests that power is present

Output Level - Unbalanced: 14mV (-37.1dBV) @ 1kHz; 21.4mV (-33.4dbV) @ 10kHz.

Power Requirements:

 12Vdc - 48Vdc phantom power
Size (L x D): 2.75" x .75"
Weight: 2 oz.
Case Material: Die cast body
Approvals: CE, RoHS and WEEE
