SPLSIGN Rack Mounted Pressure Level
Meter |
| |
 |
| |
|

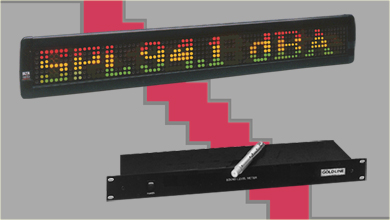

The SPLSIGN is a Rack Mounted Pressure Level Meter with
electronic message display. |
| |
|
Features |
| |
|
l |
Rack Mounted Pressure Level Meter with electronic
message display. |
|
l |
Combine SPL readings with custom display
messages. |
|
l |
Visible at 150 feet. |
|
|
|
SPLSIGN Package Contents: |
|
l |
Chassis - 12Vdc @ 240mA via 3.5mm jack - (wall transformer). |
|
l |
7.5Vdc @ 3.25A - (wall wart). |
| |
|
Specifications |
| |
| SPL |
| Measurement Range: |
65 - 123db SPL |
| Input: |
Microphone:
Detachable 600 ohm omnidirectional electret condenser.
Model MK8 |
|
Weighting:
|
IEC A, C and FLAT SPL |
|
Time
Weighting: |
RMS Fast. |
|
Attack
Time: |
0.15s |
|
Power Requirements:
|
Chassis - 12Vdc @ 240mA
via 3.5mm jack (Wall Transformer Supplied) |
|
Size (W x H x D): |
Chassis: 19" x 1.75" x
4½" |
|
Weight: |
24 oz. |
|
Material:
|
Chassis: Painted Aluminum
|
| Display |
| Display: |
80 Column x 7 Rows. |
| |
24" x 2.1" Display Area |
|
Messages:
|
65 Message Capacity. |
| |
26 Operating Modes (Roll,
Rotate, Twinkle, Scroll, Flash etc.). |
| |
Built-in Animations. |
| |
Clock With 12 or 24 Hour
Format. |
| |
Infra-red Remote Control
Programmer Included. |
|
Computer Interface: |
Serial RS232 |
|
Power Requirements:
|
7.5Vdc @ 3.25A (Wall Wart
Supplied) |
|
Operating Temperature:
|
32o to 120oF,
(0o to 50oC). |
|
Size (W x H x D):
|
25.8"L x 2.0"D x 3.8"H |
|
Weight: |
2.55 lbs. |
|
Material: |
Extruded Aluminum |
| |
Supplied with hardware
for wall or ceiling mount. |
| Approvals: |
CE, RoHS and WEEE |
|
|
|
|
