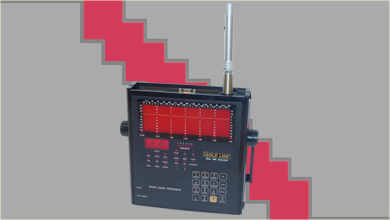

| DSP30 Real Time Analyzer |
| |
 |
| |
| The DSP30 is a Full Function Stand Alone Audio Spectrum Analyzers Measure Sound Level and Speech Intellegibility Index in CIS or STI formats when used with OPTion STICistm Software. |
| |
| Features |
| |
| l | Portable 30 channel digital 1/3 Octave Analyzer. |
| l | DSP30 microphone measurement range is 27dB to 125dB. |
| l | Captures full 85dB window with scales from ¼ to 5dB. |
| l | Filters exceed ANSI specs. |
| l | Comes with RS232 computer interface. |
| l | The DSP30 analyzes The NBA Finals at the Meadowlands |
| l | An 85dB window not limited by the display. |
| l | Automatic Sum & Average function to normalize readings and stabilize pink noise. |
| l | 60 active memories. |
| l | IEC Flat, A, C or User designated curves. |
| l | A Sum mode to sum and average response curves. |
| l | A Subtract mode to subtract one memory from another. |
| l | Keypad selectable filters: ANSI triple tuned or sharper for notching applications. |
| l | Scales from ¼dB to 5dB. |
| l | Multiple plot function. |
| l | Export file function. |
|
| DSP30 Package Contents: |
| l | DSP30: Model MK8A - 600 ohm omni-directional electret condenser instrument microphone. |
| l | OPT CVOW RS232 interface for computer use, Windows |
| l | OPT WIN Windows upgrade for OPT CVO |
|
| Accessories: |
| l | OPT 106 1/6th Octave |
| l | OPT112 1/12th Octave 27Hz/800Hz |
| l | OPT DAS Distortion Analysis |
| l | OPT DOSE Dosimeter Measurements |
| l | OPT IMP Measures Impedance |
| l | OPT NC Analyzes Noise Criteria Standards |
| l | OPT RT6030 RT 60 mode for DSP30 |
| l | OPT STA Speaker Timing Analysis |
| l | OPT STICis Speech Intelligibility Meter Software |
| l | TEF04 Omnidirectional Microphone 123dB SPL |
| l | AIF3 Cert cal DSP30 + Microphone SPL level |
| l | AIF4 Cert cal Microphone graphic response DSP30 |
| l | AIF5 Certification calibration STI CIS PI DSP30 |
| l | AIF6 Certification calibration RT60 DSP30 |
| |
| Specifications |
| |
| Measurement Range: | Microphone Inpput: 27dB to 125dB SPL | | | Line input: -88dBu to +14dBu (.031mV to 3.88V rms) | | | Measurement window: 85dB | | Inputs: | Microphone: Balanced, XLR 3 pin receptacle | | | Line: Unbalanced ¼" phone jack. 15k ohm impedance. | | Outputs: | None (standard) | | | Printer port: DB25F (optional) | | | RS232 port: DB25M (optional), Standard on DSP30B/BP | | Center Frequencies: | ISO 1/3 octave between 25Hz - 20kHz. | | Center Frequency Accuracy: | Typically ±1%. | | Relative Flatness Channel to Channel: | 1/4dB. | | Displays: | Audio Spectrum, 30 channel, 10 LEDs per channel, all channels scalable in ¼, ½, 1, 2, 3, 4, or 5dB SPL. | | | SPL & Reference readings are 3 digit via 7 segment LED readout. | | Filters: | ANSI standard (triple tuned) & sharper than standard for notching applications. | | Weighting: | IEC A, C, Flat or USER defined. | | Decay Rate: | Fast = 34.7dB/s, Medium = 8.7dB/s, Slow = 4.3dB/s | | Function Control: | 16 button keypad | Power Requirements:
| Batteries: Eight "AA" alkaline or nicad..External: 12Vdc @ 500mA via 2.1mm jack | | Size (W x H x D): | 10" x 10 ¼" x 2 ½" | | Weight: | 2 lbs. | | Case Material: | High Impact ABS. | | Manual: | NL, GB, FR | | Approvals: | CE, RoHS and WEEE | | | Emissions: - EN 55022 B - FCC Class B | | | Immunity: - EN 55024 B |
|
|
|
