30MP Microprocessor Controlled Analog Analyzer

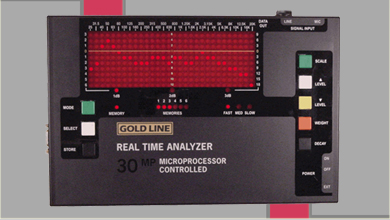

The 30MP is a Microprocessor Controlled Portable 1/3 Octave Analog Analyzer.

Features

l 1/3 Octave Audio Spectrum Analyzer.
l Microprocessor Controlled.
l Six Non-volatile memories.
l Calibrated for accurate sound pressure level readings.
l Reads in IEC A, C and Flat weighting.
l Includes RS232 port for downloads.
30MP Package Contents:
l Model MK8A microphone.

Specifications

Inputs: Microphone: XLR 3 pin receptacle with 12Vdc phantom power.
  Line: Balanced ¼" phone jack. 10k ohm impedance
Microphone: 600 ohm omni directional electret condenser. Model MK8A.
Center Frequencies: ISO 1/3 octave between 25Hz - 20kHz
Center Frequency Accuracy: Typically ±5%
Display: 30 Channel, 10, 20, 30dB window in 1, 2 or 3dB steps.
  Numeric SPL display in Flat, A or C weighting.
Memories: Six Non-volatile.
Filters: ANSI Class II
Relative Flatness Channel to Channel: ±1.0dB
Weighting: IEC A, C and FLAT
Power Requirements: Batteries - 8 AA alkaline or nicad.
  External - 12Vdc @ 500mA via 3.5mm jack.
Size (W x H x D): 10.625" x 6.875" x 1 .750"
Weight: 35 oz.
Case Material: Powder Coat Aluminum
Manual: NL, GB, FR
Approvals: CE, RoHS and WEEE
  Emissions: - EN 55022 B - FCC Class B
  Immunity: - EN 55024 B
