DSP30B
Real Time Analyzer STI/CIS |
| |
 |
| |
|
The DSP30B is a
Full Function Stand Alone Audio Spectrum Analyzers
Measure Sound Level and Speech Intelligibility Index in CIS or
STI formats when used with OPTion STICistm
Software. |
| |
|
Features |
| |
|
l |
Portable 30 channel
digital 1/3
Octave Analyzer. |
|
l |
DSP30B microphone measurement range is 27dB
to 125dB. |
|
l |
Captures full 85dB window with scales from ¼
to 5dB. |
|
l |
Filters
exceed ANSI specs.
|
|
l |
Comes with RS232 computer interface. |
|
l |
An 85dB window not limited by the display. |
|
l |
Automatic Sum & Average function to normalize readings and
stabilize pink noise. |
|
l |
60 active memories. |
|
l |
IEC Flat, A, C or User designated curves. |
|
l |
A Sum mode to sum and average response curves. |
|
l |
A Subtract mode to subtract one memory from another. |
|
l |
Keypad selectable filters: ANSI triple tuned or sharper for
notching applications. |
|
l |
Scales from ¼dB to 5dB. |
|
l |
Multiple plot function. |
|
l |
Export file function. |
|
|
|

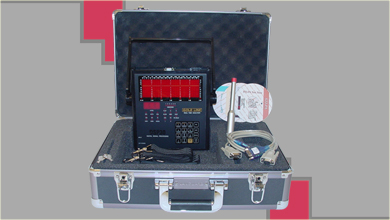

DSP30B Package Contents: |
|
l |
DSP30
Real Time Analyzer |
|
l |
TEF04
instrument microphone |
|
l |
Computer cable 9-pins male/female |
|
l |
USB Cable |
|
l |
Keys (2 pcs.) |
|
l |
OPTSTICis
Speech Intelligibility Meter Software |
|
l |
Keyboard functions DSP30 |
|
l |
Certification report for DSP30 and TEF04 |
|
l |
Manual on CD |
|
l |
Rugged carrying case |
|
|
|
Accessories: |
|
l |
CALDSP30B Calibration DSP30B |
|
l |
OPT106 1/6th Octave |
|
l |
OPT112 1/12th Octave 27Hz/800Hz |
|
l |
OPTDAS Distortion Analysis |
|
l |
OPTDOSE Dosimeter Measurements |
|
l |
OPTIMP Measures Impedance |
|
l |
OPTNC Analyzes Noise Criteria Standards |
|
l |
OPTRT6030 RT 60 mode for DSP30 |
|
l |
OPTSTA Speaker Timing Analysis |
|
l |
OPTSTICISPI PI/STI/CIS firmware |
|
l |
Talkbox STI-PA Test Tone Generator |
| |
|
Specifications |
| |
|
Measurement Range: |
Microphone Input: 27dB
to 125dB SPL
|
| |
Line input: -88dBu to
+14dBu (.031mV to 3.88V rms) |
| |
Measurement window:
85dB |
|
Inputs: |
Microphone: Balanced,
XLR 3 pin receptacle |
| |
Line:
Unbalanced ¼" phone jack. 15k ohm impedance. |
|
Outputs: |
None (standard) |
| |
Printer port: DB25F
(optional) |
| |
RS232 port: DB25M
(optional), Standard on DSP30B/BP |
|
Center Frequencies: |
ISO 1/3 octave between 25Hz - 20kHz. |
|
Center Frequency
Accuracy: |
Typically ±1%. |
|
Relative Flatness
Channel to Channel: |
1/4dB. |
|
Displays: |
Audio Spectrum, 30
channel, 10 LEDs per channel, all channels scalable in
¼, ½, 1, 2, 3, 4, or 5dB SPL. |
| |
SPL & Reference readings
are 3 digit via 7 segment LED readout. |
|
Filters: |
ANSI standard (triple
tuned) &
sharper than standard
for notching applications. |
|
Weighting: |
IEC A, C,
Flat or USER defined. |
|
Decay
Rate: |
Fast =
34.7dB/s, Medium = 8.7dB/s, Slow = 4.3dB/s |
|
Function Control: |
16 button keypad |
Power Requirements:
|
Batteries: Eight "AA"
alkaline or nicad..External: 12Vdc @ 500mA via 2.1mm
jack |
|
Size (W x H x D): |
10" x 10 ¼" x 2 ½" |
|
Weight: |
2 lbs. |
|
Case
Material: |
High Impact
ABS. |
|
Manual: |
NL, GB, FR |
|
Approvals: |
CE, RoHS and
WEEE |
| |
Emissions: - EN 55022 B -
FCC Class B |
| |
Immunity: - EN 55024 B |
|
|
|
|
